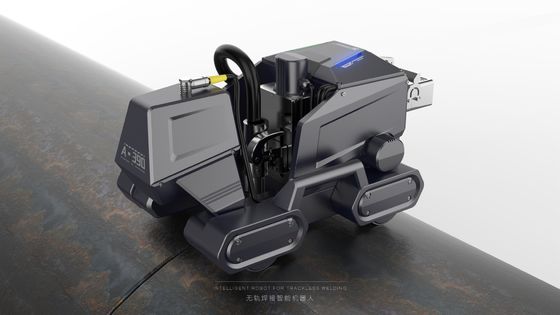

All Position Automatic Welding Machine With Laser Calibration And Tracking Portable Welding Tractor

Function: It can be used for all position welding of water pipe and large cylinder. GMAW/FCAW-GS/ GTAW welding processes can be applied. It is suitable for automatic welding of various bevel design,.

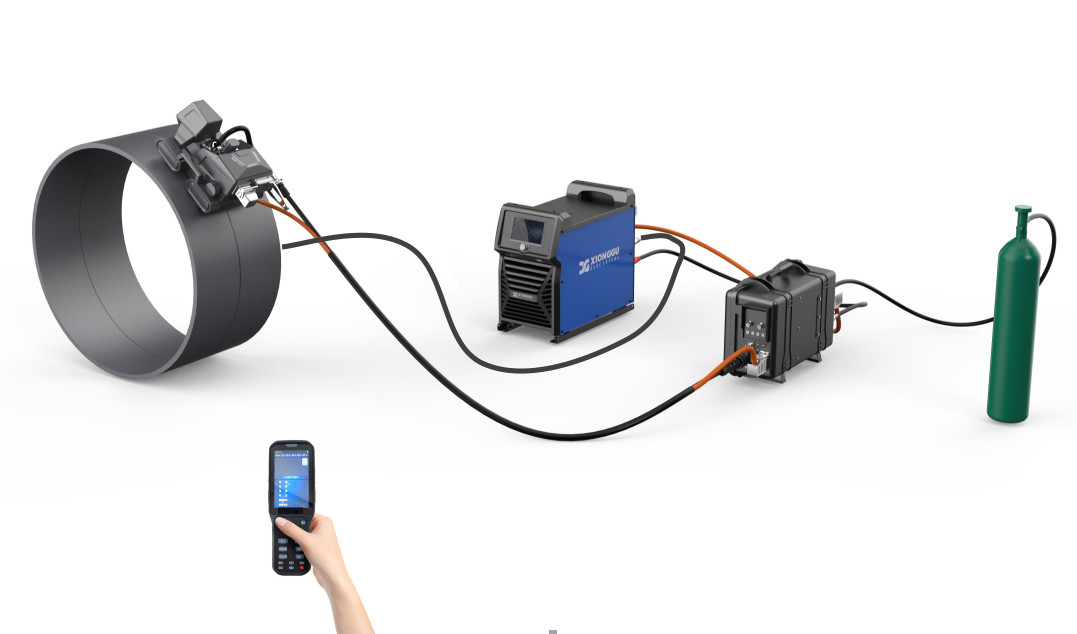

Configuration:Welding head, adapter, external wire feeder, welding torch, portable panel, control cables, welding power source.

Features:

Chinese/English language display.

Operated via portable panel, reduce the welder's labor intensity.

The triangular oscillation and trapezoidal oscillation can be realized to adapt to the different

welding processes.

Wide adjustable range of chassis of the welding head, it’s possible to realize all position welding of pipe and cylinder if various bands/tracks are installed.

Welding seam arc tracking function is built-in.

Built-in welding expert database, corresponding welding parameters can be modified and called according to the access level.

Parameters can be modified and called via portable panel to realize smooth transition of welding parameters of each pass and precise all position welding.

Main Technical Parameters

Model	A-390
Product ID	4361000001
Applicable Pipe Diameter	≥Φ1219 mm
Travel Speed	0.1~1.3 m/min
Wire Feeding Speed	2.5~15 m/min
Number of Section per Group	1~180 Sections
Torch Oscillation Width	0~40 mm
Torch Oscillation Mode	Linear
Weight of Wire Spool	5kg/15kg
Ambient Temperature	-20~55℃
Altitude	≤1000m(大于1000m负载持续率有所下降)
Ingress Protection	IP54
Weight	20kg
Dimensions (L×W×H)	560mm×300mm×250mm
